WESTONE THUNDER II (année de production 1981, avril ?)
Version 1 (1981-2)
Specs (as shown in the 1981 catalogue)
body: Canadian Ash, Rock Maple and Walnut
set neck (similar to that on the Rainbow I and II) 5-piece laminate of Ash, Maple and Walnut
fingerboard: Rosewood
24.75 inch scale
22 frets
two Magnet-530 pickups
3-way selector switch
master volume and two tone controls
phase and coil tap switches
steel tailpiece and bridge with brass saddles
brass nut
available in Sunset Red and Navy Blue with a Light Oak centre stripe
https://westoneguitars.net/gui(...)r-ii/
Spécificités des micros :
#530DS
Diameter of Coil: 0.055
Number of Coil: 6.000
Magnet/Material: Anisotropy Ferrite
Size: 59x6x12.5
DC Ohms: 11.39k
Inductance: 5.77 Henries
Impedance at 100Hz: 12.0k
Impedance at 1000Hz: 39.6k
Impedance at 2,500Hz: 95.0 k
https://westone.forumotion.com(...)types
Je ne retrouve plus le lien mais j'ai lu que beaucoup de micros des Matsumoku de cette époque pourraient être des Dimarzio (à vérifier bien sûr)

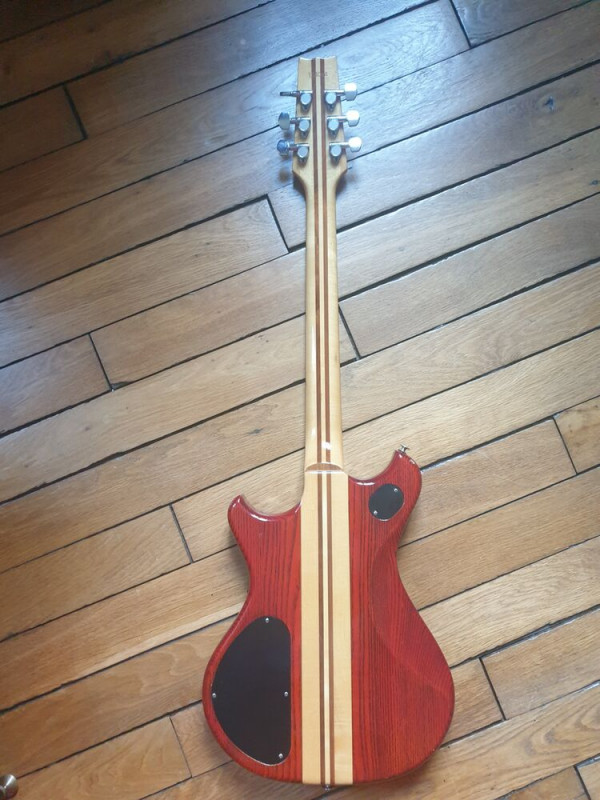

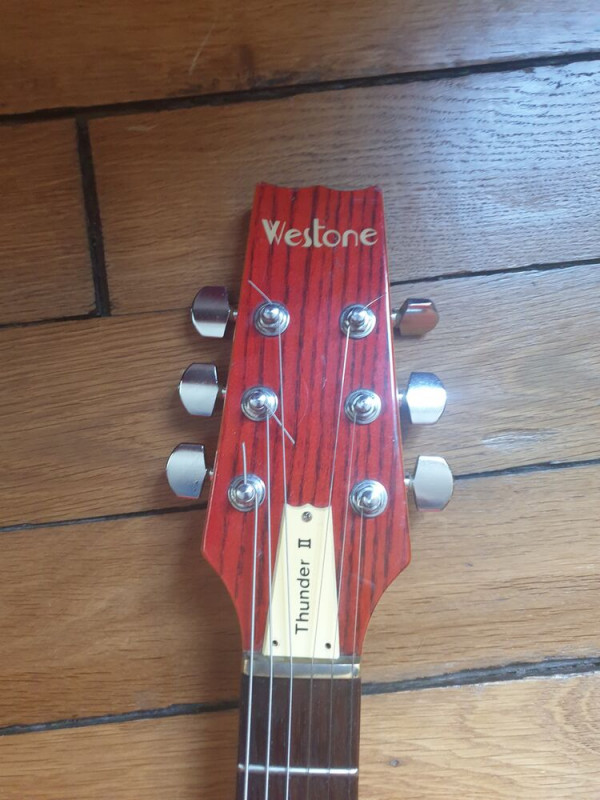

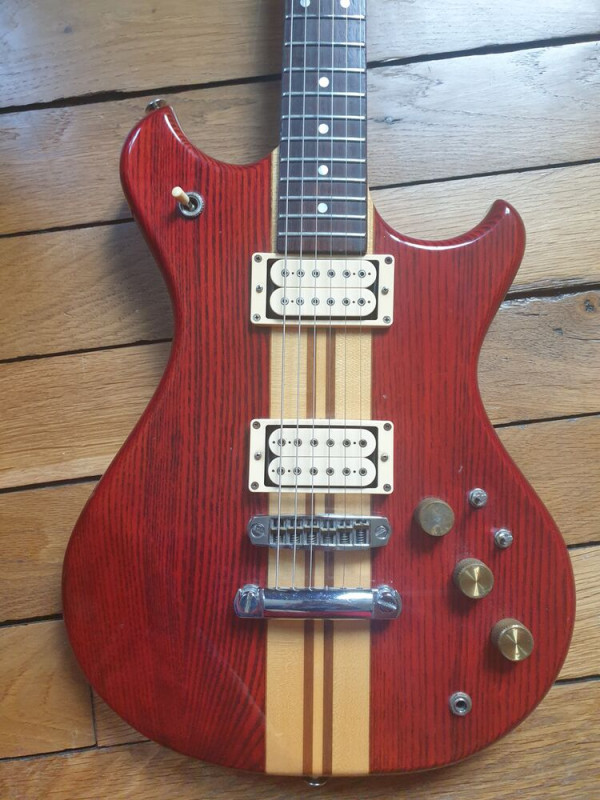

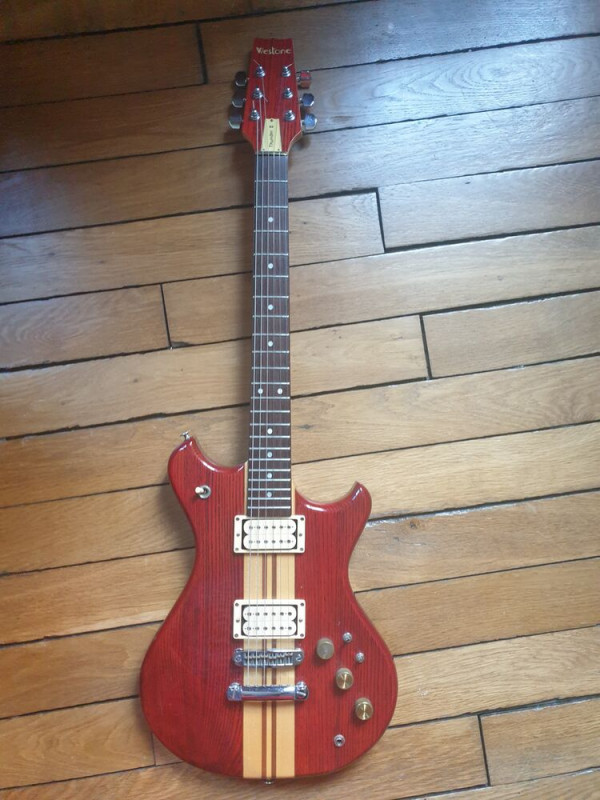

Ci-dessous les photos de l'ancien proprio :
Thunder 2 a
Thunder 2 b
Thunder 2 c
Thunder 2 d
